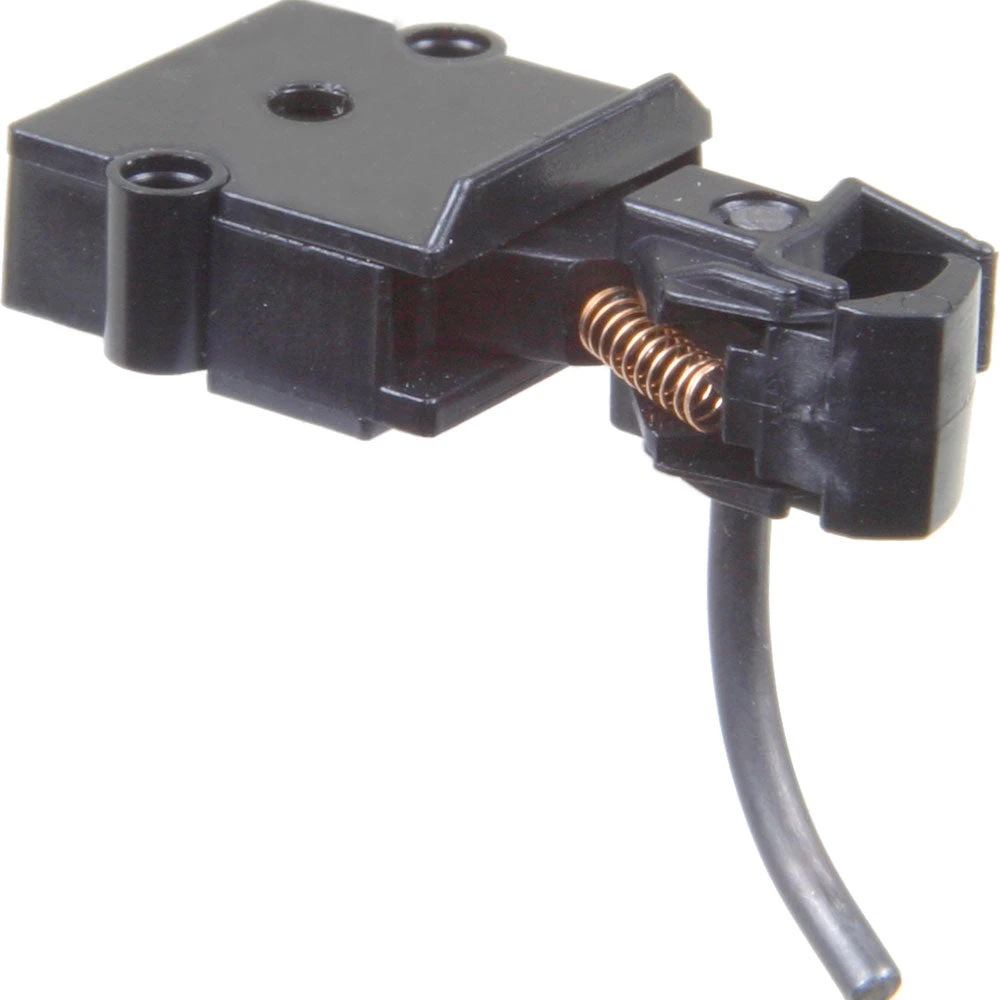

Kadee O Scale 806 Short Plastic Couplers with Plastic Short Gearboxes – Black

This industry leading coupler features Original Style Head Short Centerset Plastic Couplers, and #850 O Scale centering spring and comes complete with Short Plastic Gearboxes and lids. The #743 Metal Coupler may be mounted with the included Short Plastic Gearbox (#806 type).

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

• One pair per package
• UPC: 765484008064
• USA Flag Made in the U.S.A.

O-Scale

• Simple Drop in Design
• Trouble Free Operation
• Compatible with All Kadee® O-Scale Couplers
• World-Renowned Quality & Performance
• They just Last & Last & Last…

Package Includes:

• (2) Each #806 Original Style Plastic Couplers – Short Centerset Shank
• (2) Each Short Plastic Gearboxes & lids (#806 type)
• (3) Each #850 O Scale Centering Springs

#806 Plastic Coupler Features:

• Material – Plastic
• Shank Length – Short (47/64″) (Knuckle pulling face to center hole of Draft Gearbox)
• Coupler Offset – Centerset
• Centering Spring – #850 O Scale Centering Springs
• Knuckle Spring – #845 O Scale Knuckle Springs
• Head – Original Style Head
• Works In Place of – #743 O Scale Short Centerset Shank Couplers
• Works With – #806 type Draft Gearboxes

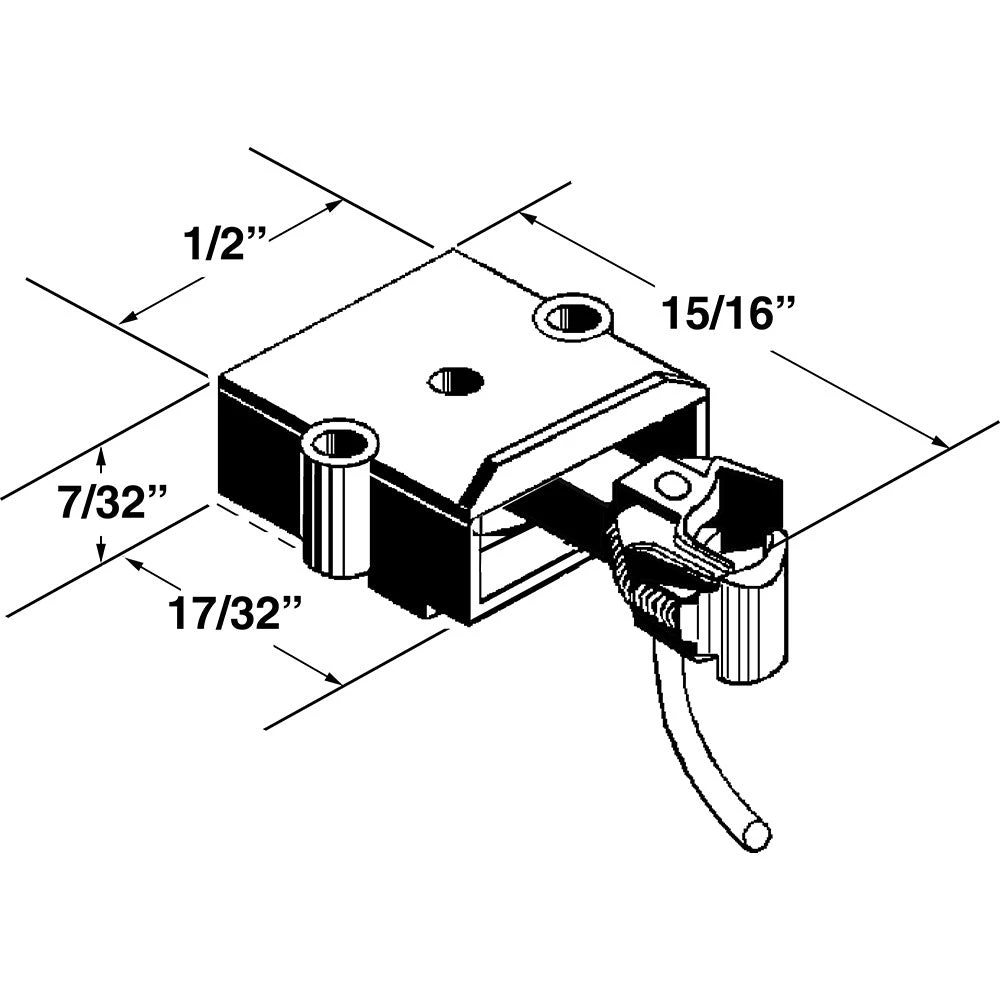

Plastic Short Draft Gearboxes & Lids Features (#806 type):

• Material – Plastic
• Dimensions – 17/32″L x 1/2″W x 7/32″H
• Works With – #743, & #806 Couplers

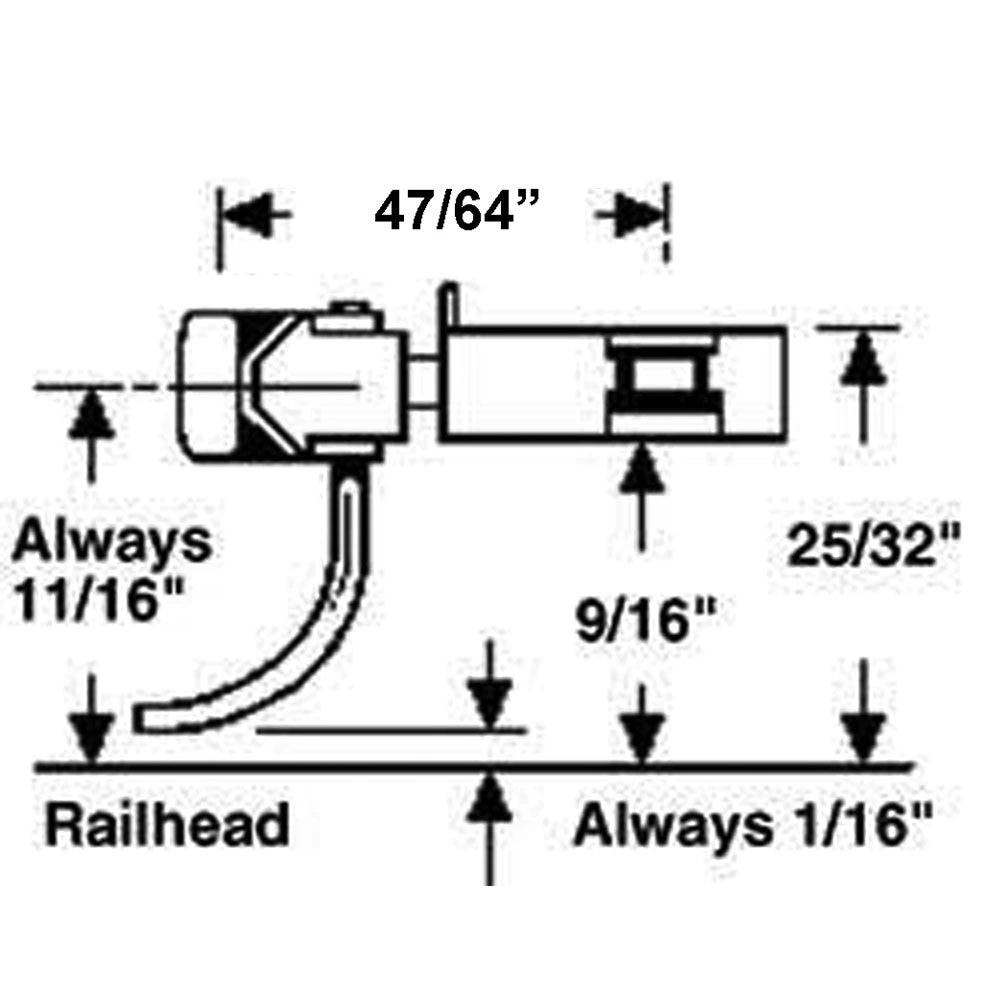

Mounting Specifications:

• Mounting Height – 25/32″
• Centerline – 1 1/16″
• Trip Pin Height – 1/16″
• Mounting Holes – 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
